Blue Spirit Patrol – 11m20

Blue Spirit Patrol – 11m20

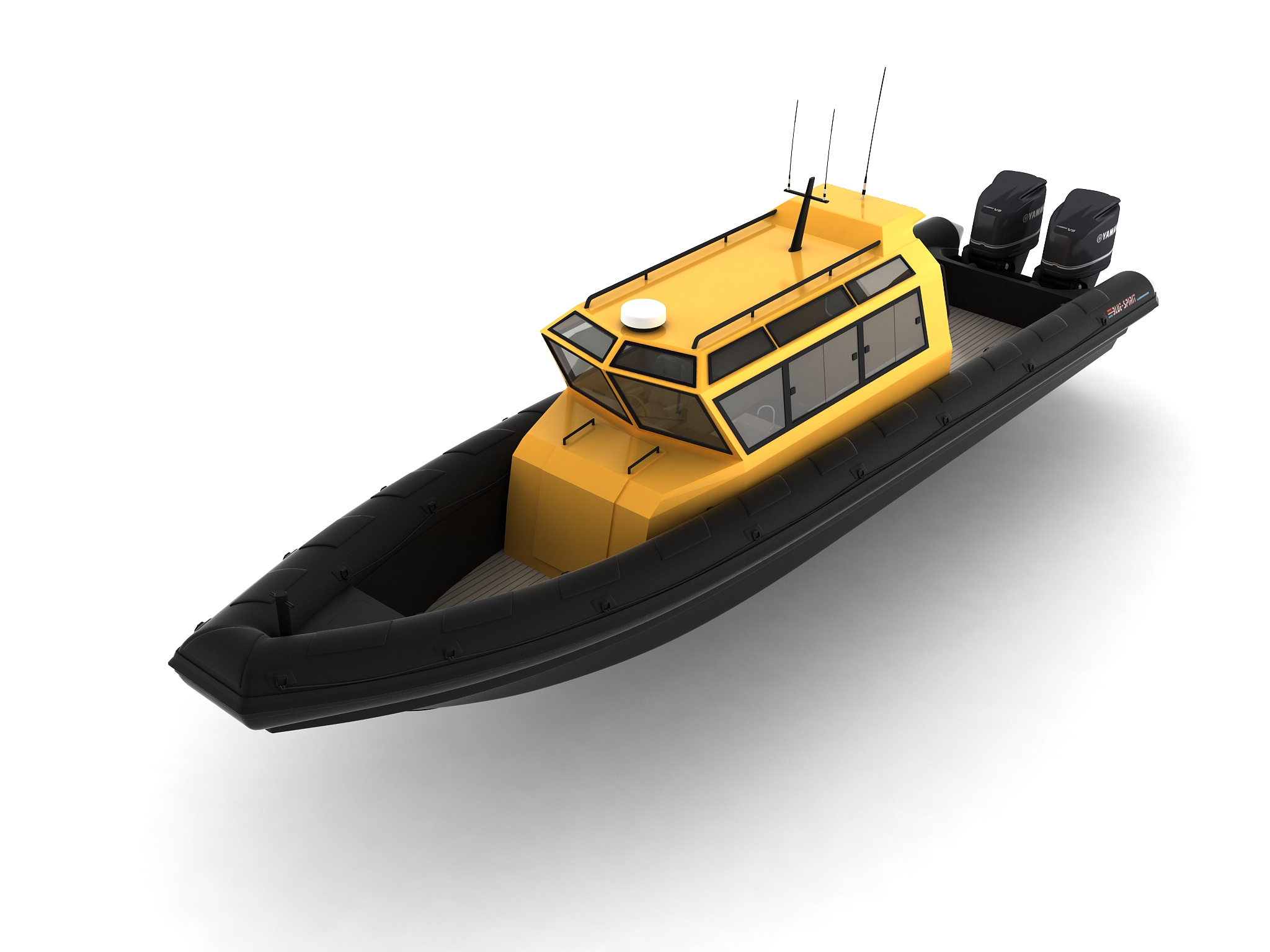

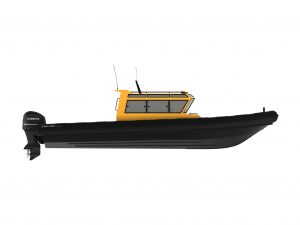

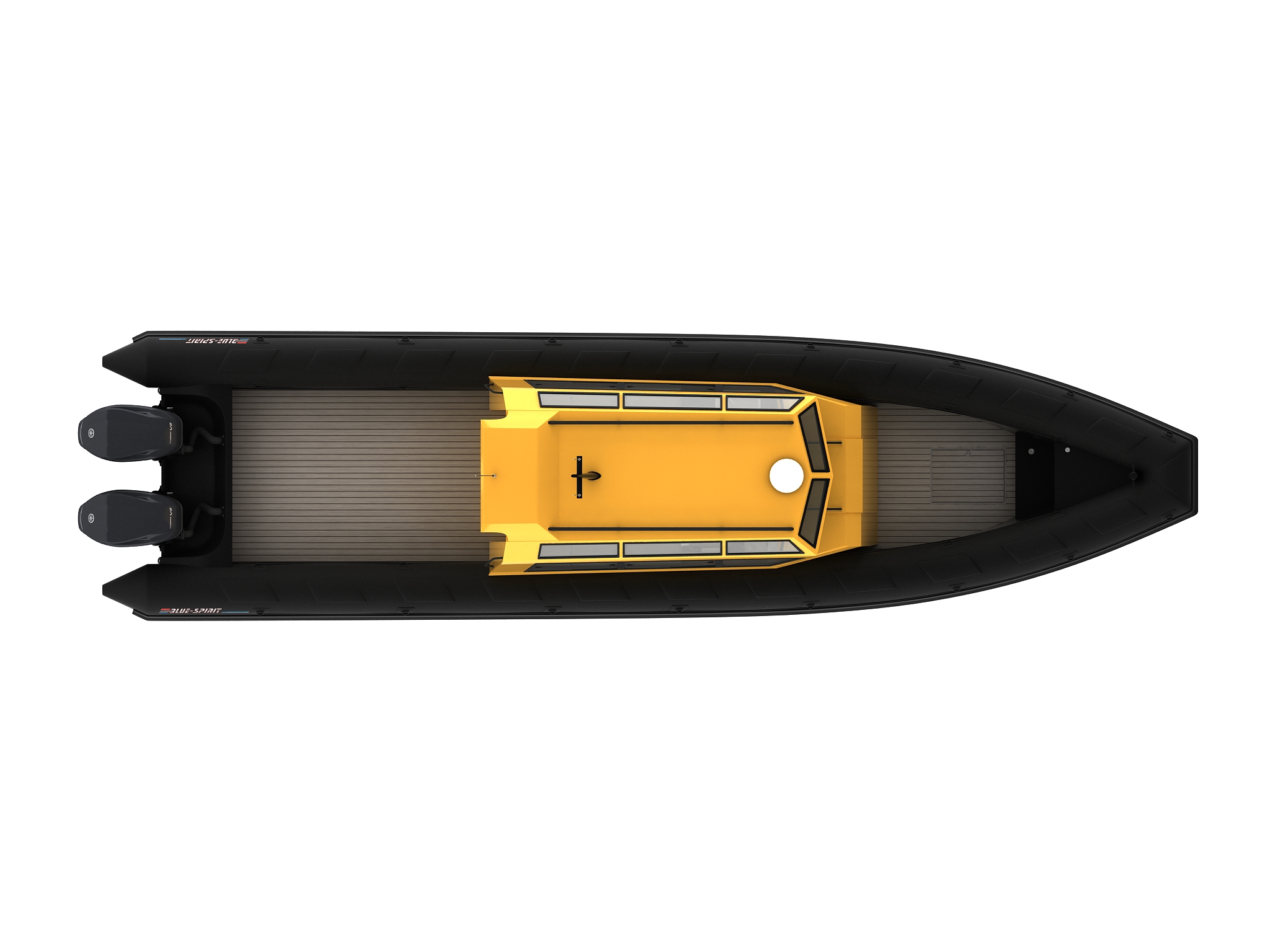

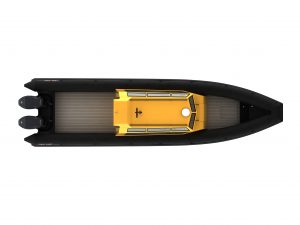

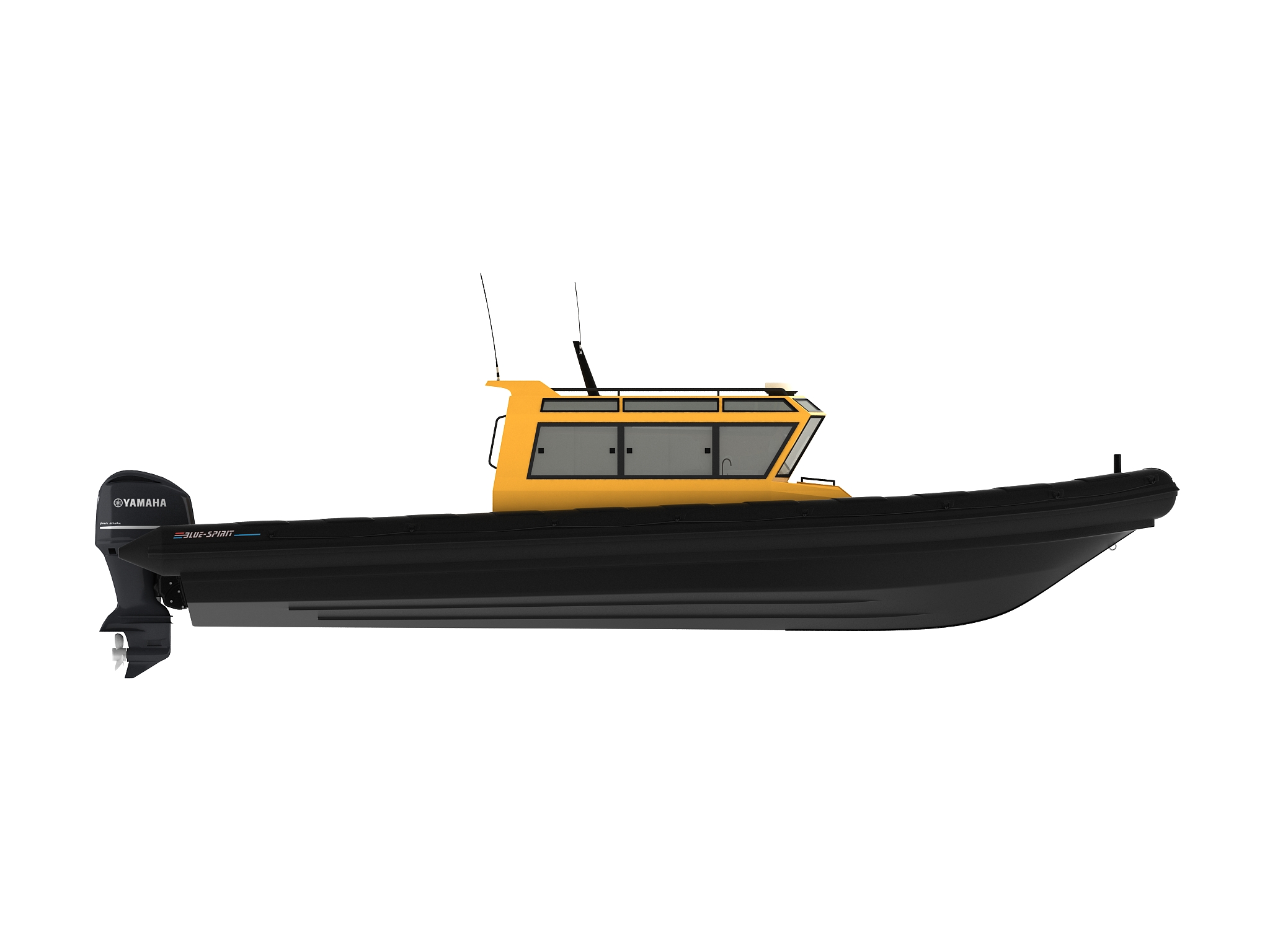

BS11m20_03BS11m20_05BS11m20_06
Click on the image to see the enlarged version.

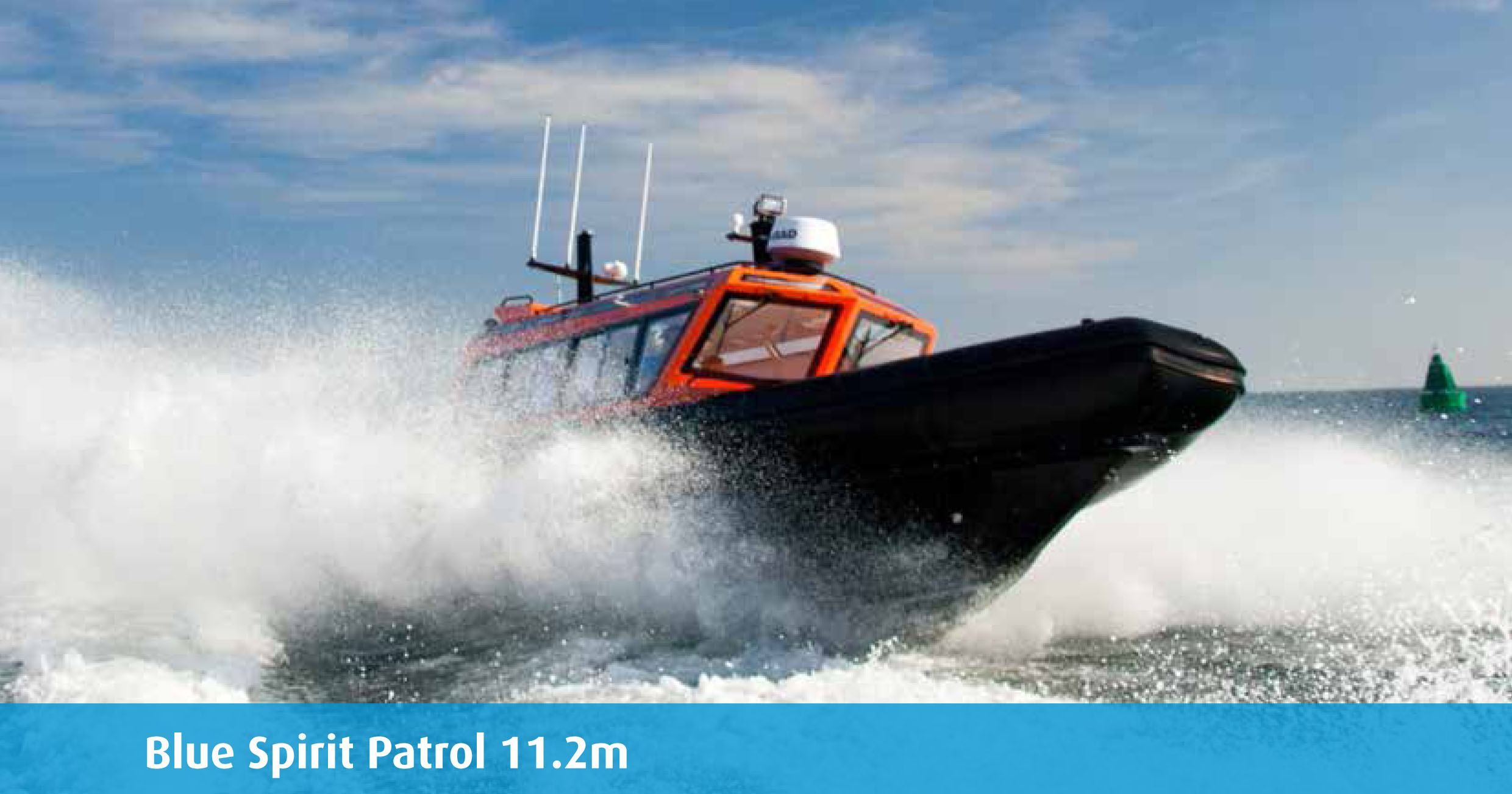

11,2

The Blue Spirit Patrol 11.20 meter has a length of 11.20 meters with a capacity of maximum 22 persons. The beam has a length of 2.95/3.00 meters and the tube is 0.55/0.60 meters wide. The whole Blue Spirit Patrol boat has a casco weight 1610kg. All Patrol boats have a fuel tank of 200L.

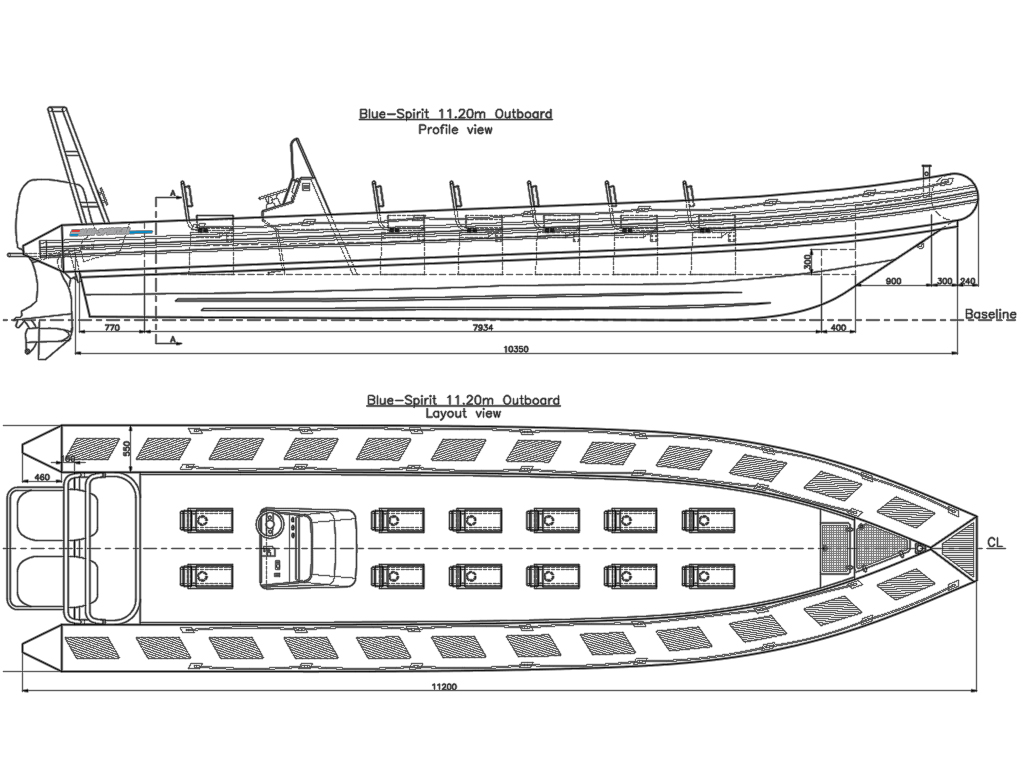

11m20 outboard

linesopen9m50

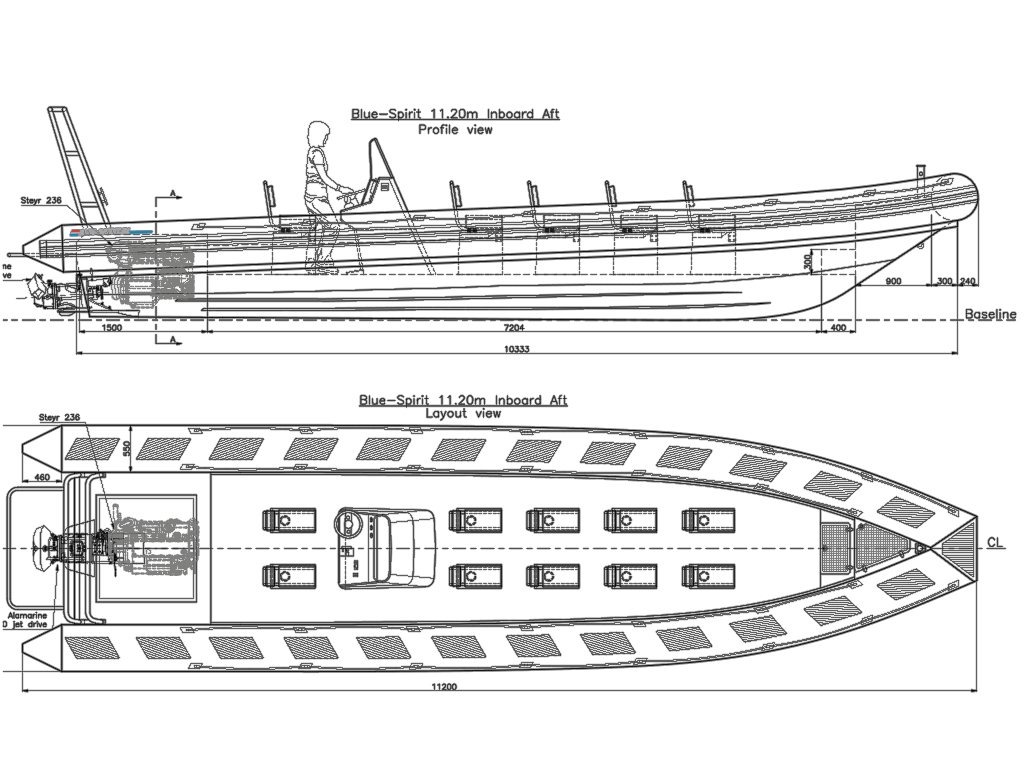

11m20 inboard aft

linesopen9m50

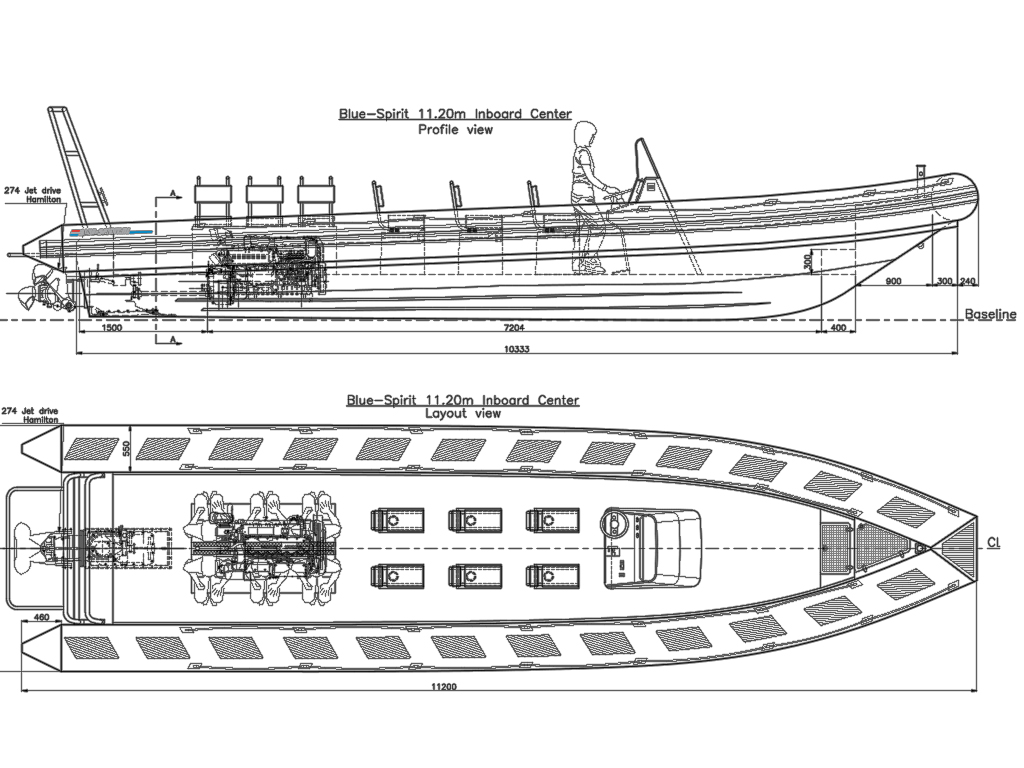

11m20 inboard center

linesopen9m50

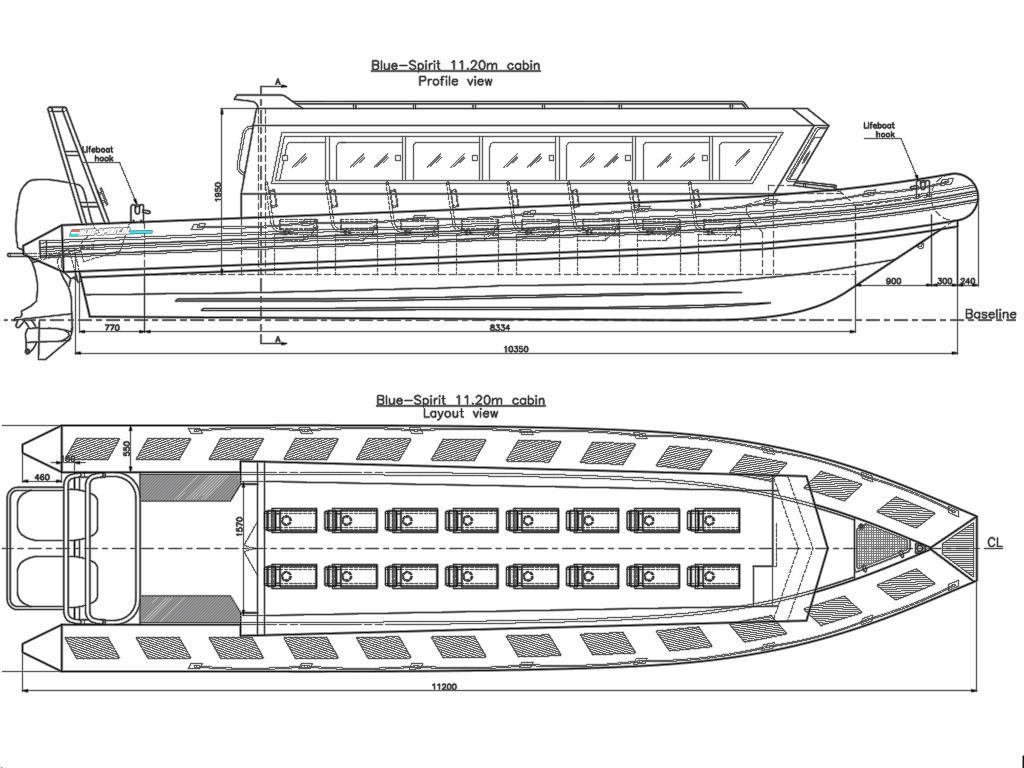

11m20 cabin

linesopen9m50

Standard hull specifications:
• Casco hull
• Air filled fender – lifelines – rubbing strake
• Standard 200-liter fuel tank with fuel inlet/air vent
• Bollard (in bow)
• Bilge flaps
• Lifting eyes
• Footpump
• Repair kit
• 2 pc Bilge flaps

Option package:
• Inboard or outboard engine with sterndrive or waterjet propulsion
• Divinycell core
• Vacuum injection manufacturing
• Teak deck finishing
• PU foam filled D- or round fender
• Anti-slide patches
• Straps for securing inventory bags
• Small / medium / large steering console
• Front seat on console
• Polycarbonate window shield
• Extra handgrips
• Jockeyseat 50 / 150-180mm suspension
• Suspension seat
• Leaning post
• Benches / tables
• Cabin
• HVAC system
• Navigation system
• Communication system
• Water system (toilet)
• Various deck equipment
• Various anchor and mooring equipment (line)
• Professional electrical installation IP67
• Manual/ electrical bilge pump
• Closed type cabin

Steering console options:
• GRP steering console small
• GRP steering console medium with storage room and hatch
• GRP steering console wide with storage room and door
• GRP steering console with mid engine compartment
• Aluminium console
